Description
ZSP Series

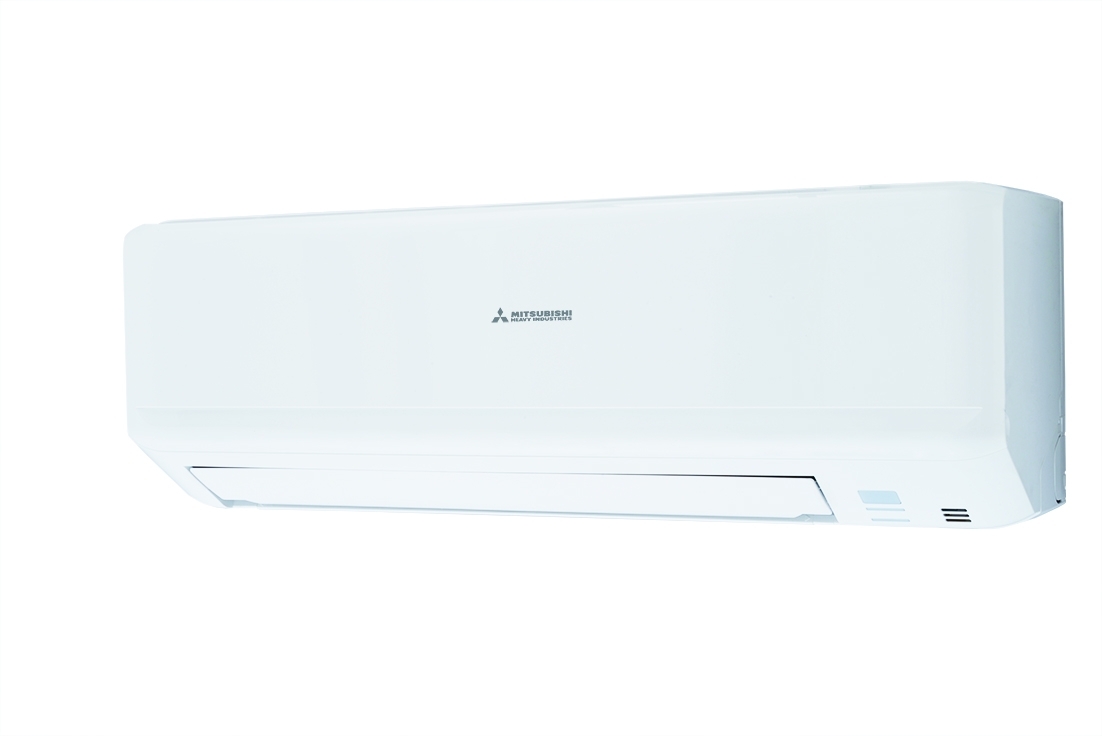

Introducing the ZSP Series, featuring a slim-profile indoor unit with a decreased height of 262mm, enabling convenient installation above door openings and windows. The innovative multiple-stage heat exchanger, expertly folded to envelop the upper section of the fan enclosure, ensures minimal air velocity and lower sound levels. This design, while achieving high performance and efficiency, enhances the overall user experience.
Product Description

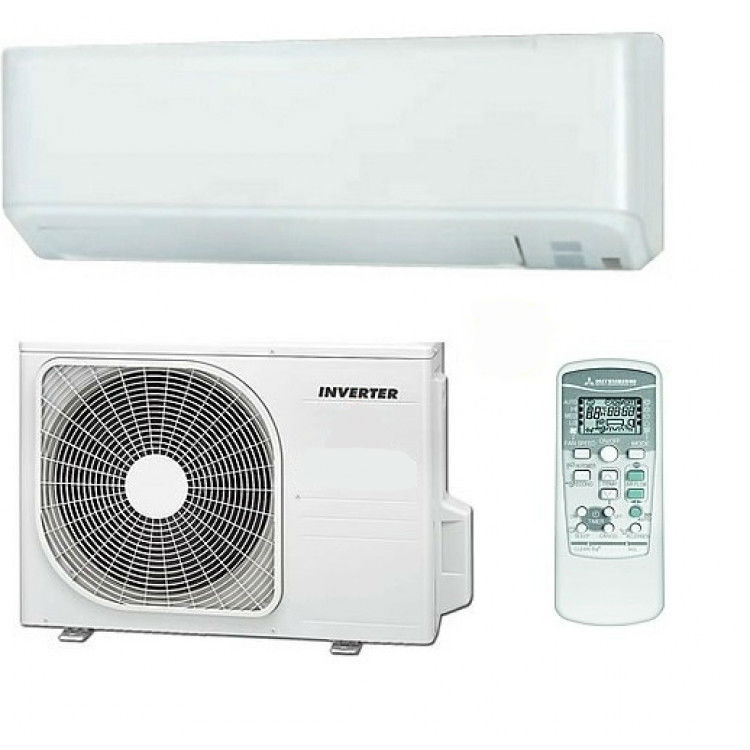

The Mitsubishi Heavy Industries SRK45ZSP-W Wall Mounted 4.5kw Air Conditioning System are available as standard and premium units. Standard heat pump systems use inverter technologies whilst offering excellent value for money, while premium models features the up-to-the-minute inverter technologies and high efficiency in heat pump technology, with an assortment of additional fun. The SRK-ZSP-W model offers an inverter controlled air conditioner and heat pump at a reasonable price. This model has 3 main modes and can be switched between heating, cooling and dehumidification.
| Indoor / Outdoor Model No |
SRK45ZSP-W / SRC45ZSP-W |
| Nominal Cooling Range (kW) | 4.5 (0.9-4.8) |
| UK Cooling Range Total – Sensible (kW) | 4.3 – 3.0 |
| Nominal Heating Range (kW) | 5.0 (0.8 – 5.8) |
| UK Heating (kW) | 3.6 |
| SEER-SCOP (Cool – Heat) | 5.38 – 3.81 |
| ERP (Cool / Heat) | A / A |
| EER-COP (Cool – Heat) | 3.01 – 3.61 |
| Energy Label (Cool / Heat) | B / A |
| Ambient Range – Cooling °C | 46 to -15 |
| Ambient Range – Heating °C | 24 to -15 |
| Indoor Unit Dimensions (H -W – D) mm | 262 – 769 – 210 |
| Outdoor Unit Dimensions (H – W – D) mm | 595 – 780 (+62) – 290 |
| Weight (Indoor – Outdoor) kg | 7.6 – 40 |
| Indoor Unit Airflow Rate – Cool (L – M – D) l/s | 63 – 120 – 150 |
| Indoor Unit Airflow Rate – Heat (L – M – D) l/s | 103 – 153 – 200 |
| Static Pressure Pa | 0 |
| Indoor Sound Pressure – Cool (L – M – H) dB(A) | 25 – 40 -46 |
| Indoor Sound Pressure – Heat (L – M – H) dB(A) | 32 – 43 – 48 |
| Outdoor Sound Pressure (Cool – Heat) dB(A) | 52 – 53 |
| Pipe Sizes (Gas – Liquid) in | 1/2″ – 1/4″ |
| Pipe Limits (Max Run – Height Diff.) m | 25 – 15 |
| Pre Charged For (m) | 15 |
| Suitable for Replacement Tech. | Yes |
| Indoor Drain Connection (mm) | VP16 (14id 16od) |
| Power Supply (Outdoor) V – Ph – Hz | 230 – 1 – 50 |
| Interconnecting Cables | 3 core + E |
| Running Current (Cool – Heat) A | 6.7 – 6.2 |
| Power Consumption (Cool – Heat) kW | 1.495 – 1.385 |
| Start – Max Run Current (A) | 7.0 – 14.0 |
| Suggested Fuse Size (A) | 16 |
