Description
Product Description

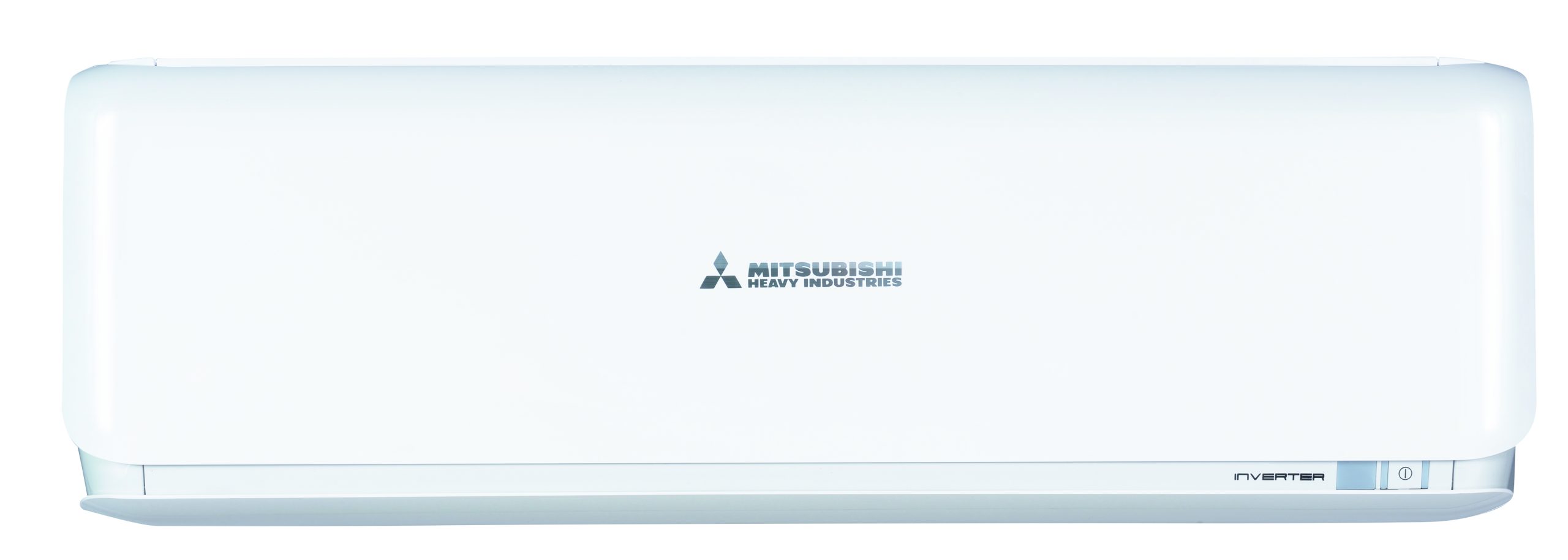

The Mitsubishi SRK35ZSX-S air conditioning systems are wall mounted and come in three options standard diamond and premium this covers from 2kw to 10kw. Standard heat pump systems use inverter technologies and offer excellent value for money. The 10kW Diamond system has an air throw ability of 20mtrs The Diamond units offer the highest level of efficiency and feature state of the art inverter motors for maximum energy savings. the premium models features the latest inverter technologies and high efficiency in heat pump technology. Built in WiFi allows you to control your air conditioning from your smart device, anywhere.
Key Features
Wi-Fi- Built in with use of Smart M-Air App
Weekly Timer/Sleep Timer
Allergen Clear Filter + Photo-catalytic Washable Filter
Motion Sensor/ECO Operation/Auto Off
Allergen Clear Filter – Effective against Covid!
Allergen Clear Operation – Eliminates allergens & bacteria captured in anti-allergen filter in less than 90 minutes.
Super High CoP, up to record 5.74
New advanced technology control
Infra-red controller with wall mounting bracket
Reduced height slim construction
Silver insert trim styling.
| Indoor / Outdoor Model No | SRK35ZSX-WF / SRC35ZSX-W |
| Nominal Cooling (Range) kW | 3.5 (0.9-4.3) |
| UK Cooling (Total – Sensible) kW | 3.3 – 3.1 |
| Nominal Heating (Range) kW | 4.3 (0.8-6.6) |
| UK Heating kW | 3.1 |
| SEER – SCOP (Cool – Heat) | 9.2 – 5.1 |
| EER – COP (Cool – Heat) | 4.49 – 4.78 |
| Energy Label (Cool – Heat) | A+++ / A+++ |
| ECA | Yes |
| Cooling °C | 46 to -15 |
| Heating °C | 24 to – 20 |
| Indoor Unit Dimensions (H-W-D)mm | 305 – 920 – 220 |
| Outdoor Unit Dimensions (H-W-D)mm | 640 – 800 (+71) – 290 |
| Weight (Indoor – Outdoor) kg | 13.0 – 43.0 |
| Indoor Unit Airflow Rate Cool (L-M-H) l/s | 7.3 – 10.8 – 13.1 |
| Indoor Unit Airflow Rate Heat (L-M-H) l/s | 8.6 – 11.8 – 13.9 |
| Static Pressure Pa | 0 |
| Indoor Sound Pressure Cool (L-M-H) dB(A) | 26 – 35 – 43 |
| Indoor Sound Pressure Heat (L-M-H) dB(A) | 28 – 35 – 41 |
| Outdoor Sound Pressure (Cool – Heat) dB(A) | 48 – 47 |
| Pipe Sizes (Gas – Liquid) in | 3/8″ & 1/4″ |
| Pipe Limits (Max Run -Height Diff) m | 20 – 15 |
| Pre Charged For (M) | 15 |
| Charge R410a (Factory – Additional) | 1.45 – 20g/m |
| Suitable for Replacement Tech | Yes |
| Indoor Drain Connection (mm) | VP16 (14id 16 od) |
| Power Supply (Outdoor) V – Ph – Hz | 230 – 1 – 50 |
| Interconnecting Cable | 3 core + E |
| Running Current (Cool – Heat) A | 3.7 – 4.3 |
| Power Consumption (Cool – Heat) kW | 0.78 – 0.90 |
| Start – Max Run Current (A) | 4.3 – 9 |
| Suggested Fuse Size (A) | 16 |
