Description

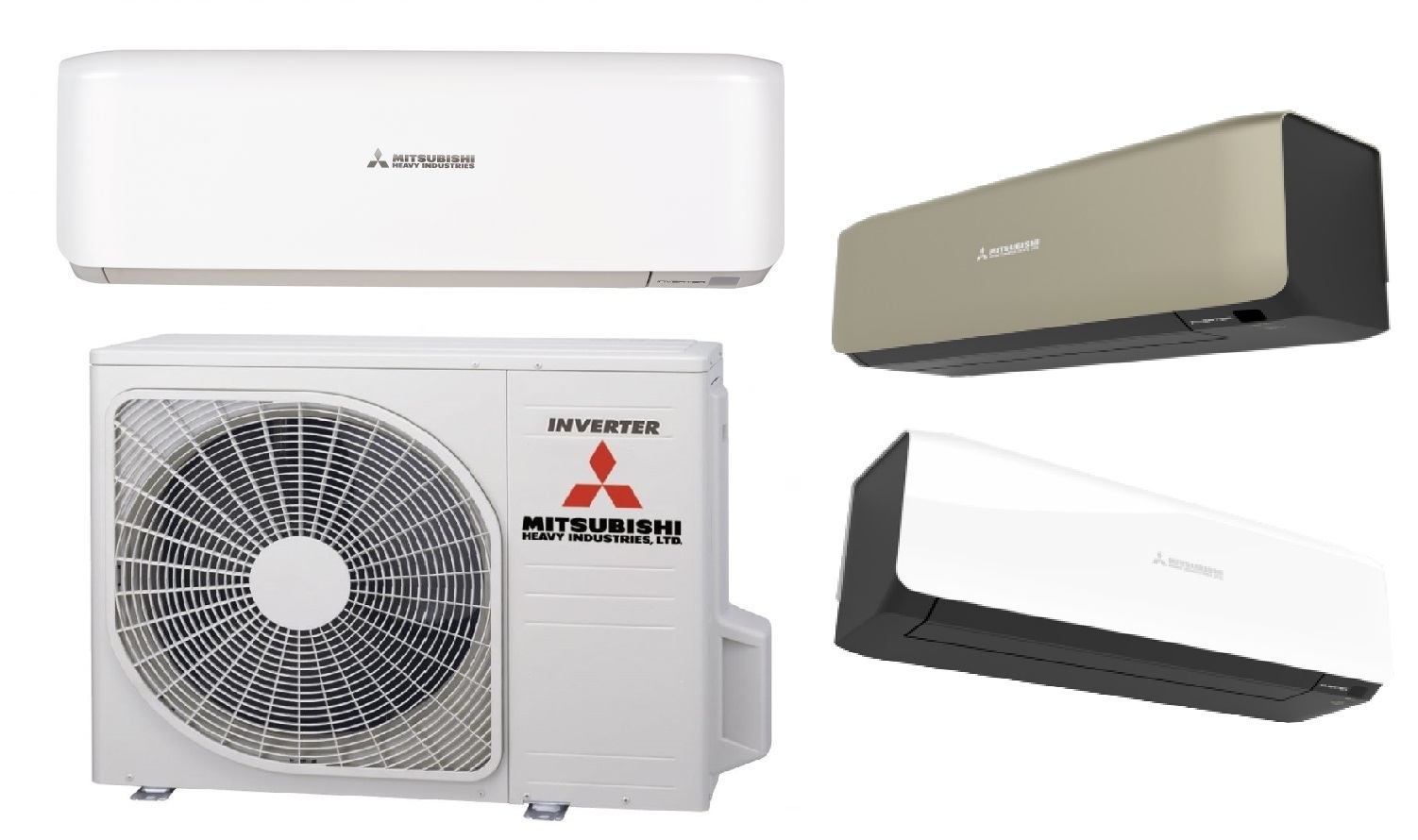

The Mitsubishi Heavy Industries SRK35ZS-WFT Air Conditioning System in White with Thermal systems which offer the seamless answer for air conditioning luxury in several environments. The whole range is branded by high flexibility, high energy efficiency and very low noise levels.
This range of compact and stylish indoor units are obtainable in 6 different types, making air conditioning any indoor setting possible.
The multi DC inverter range are state-of-the-art multi-split system from Mitsubishi Heavy Industries. Built in WiFi allows you to control your air conditioning from your smart device, anywhere.
Indoor / Outdoor Model No | SRK35ZS-WFT / SRC35 ZS-W2 |
Nominal Cooling (Range) kW | 3.5 (1.0 – 3.8) |
UK Cooling (Total – Sensible) kW | 3.3 – 2.8 |
Nominal Heating (Range) kW | 4.0 (0.9 – 4.8) |
UK Heating kW | 2.9 |
SEER – SCOP (Cool – Heat) | 7.8 – 4.26 |
EER – COP (Cool – Heat) | 3.47 – 4.0 |
Energy Label (Cool – Heat) | A++ / A++ |
ECA | Yes |
Cooling °C | 46 to -15 |
Heating °C | 24 to -15 |
Indoor Unit Dimensions (H-W-D)mm | 290 – 870 – 230 |
Outdoor Unit Dimensions (H-W-D)mm | 540 – 780 (+62) – 290 |
Weight (Indoor – Outdoor) kg | 9.5 – 34.5 |
Indoor Unit Airflow Rate Cool (L-M-H) l/s | 7.0 – 8.7 – 11.3 |
Indoor Unit Airflow Rate Heat (L-M-H) l/s | 7.0 – 11.0 – 12.3 |
Static Pressure Pa | 0 |
Indoor Sound Pressure Cool (L-M-H) dB(A) | 26 – 30 – 40 |
Indoor Sound Pressure Heat (L-M-H) dB(A) | 25 – 36 – 41 |
Outdoor Sound Pressure (Cool – Heat) dB(A) | 50 – 48 |
Pipe Sizes (Gas – Liquid) in | 3/8″ & 1/4″ |
Pipe Limits (Max Run -Height Diff) m | 20 – 15 |
Pre Charged For (M) | 15 |
Charge R410a (Factory – Additional) | 0.95 – 20g/m |
Suitable for Replacement Tech | Yes |
Indoor Drain Connection (mm) | VP16 (14id 16 od) |
Power Supply (Outdoor) V – Ph – Hz | 230 – 1 – 50 |
Interconnecting Cable | 3 core + E |
Running Current (Cool – Heat) A | 4.7 – 4.7 |
Power Consumption (Cool – Heat) kW | 1.01 – 1.00 |
Start – Max Run Current (A) | 4.7 – 9 |
Suggested Fuse Size (A) | 16 |
<
