Description
Environmental Impact
Mitsubishi Heavy Industries Thermal Systems is steadfastly dedicated to confronting future challenges and contributing to global sustainability by offering highly energy-efficient air-conditioning systems. Through extensive research and development, the company integrates cutting-edge technologies into its units to maximise energy efficiency and significantly reduce carbon emissions.
Product Description

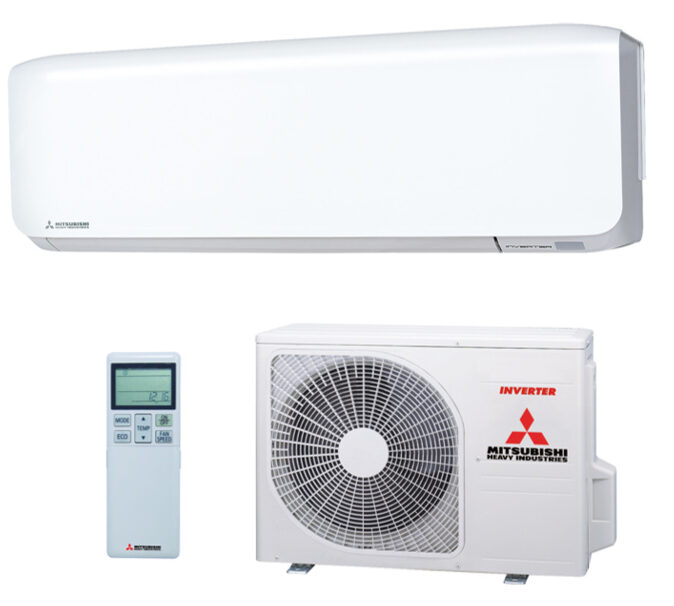

The Mitsubishi Heavy Industries SRK35ZS-WF Air Conditioning System in White with Thermal systems offers the seamless answer for air conditioning luxury in several environments. The whole range is branded by high flexibility, high energy efficiency and very low noise levels.
This range of compact and stylish indoor units is obtainable in 6 different types, making air conditioning in any indoor setting possible.

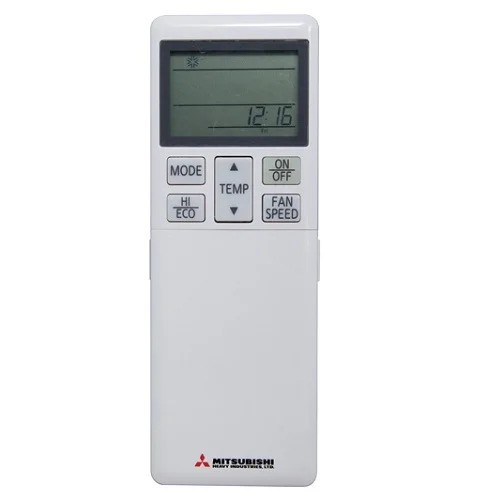

The multi-DC inverter range is a state-of-the-art multi-split system from Mitsubishi Heavy Industries. Built-in WiFi allows you to control your air conditioning from your smart device anywhere.
| Indoor / Outdoor Model No | SRK35ZS-WF / SRC35 ZS-W2 |
| Nominal Cooling (Range) kW | 3.5 (1.0 – 3.8) |
| UK Cooling (Total – Sensible) kW | 3.3 – 2.8 |
| Nominal Heating (Range) kW | 4.0 (0.9 – 4.8) |
| UK Heating kW | 2.9 |
| SEER – SCOP (Cool – Heat) | 7.8 – 4.26 |
| EER – COP (Cool – Heat) | 3.47 – 4.0 |
| Energy Label (Cool – Heat) | A++ / A++ |
| ECA | Yes |
| Cooling °C | 46 to -15 |
| Heating °C | 24 to -15 |

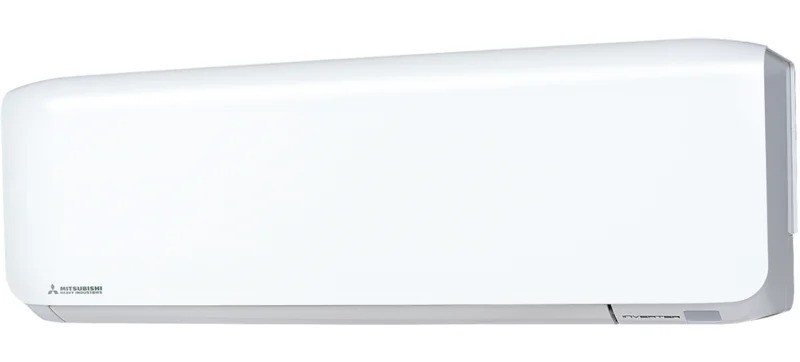

| Indoor Unit Dimensions (H-W-D)mm | 290 – 870 – 230 |

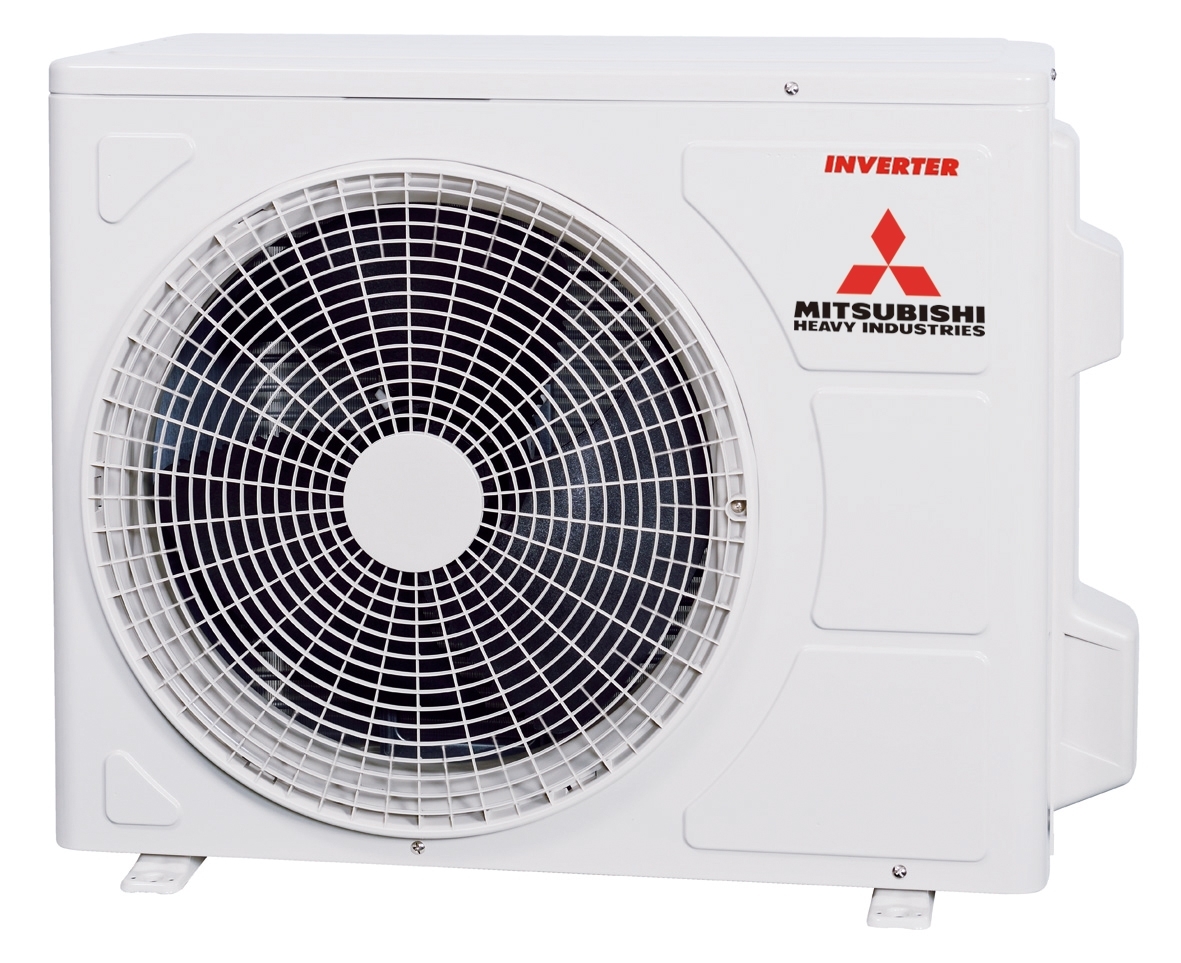

| Outdoor Unit Dimensions (H-W-D)mm | 540 – 780 (+62) – 290 |
| Weight (Indoor – Outdoor) kg | 9.5 – 34.5 |
| Indoor Unit Airflow Rate Cool (L-M-H) l/s | 7.0 – 8.7 – 11.3 |
| Indoor Unit Airflow Rate Heat (L-M-H) l/s | 7.0 – 11.0 – 12.3 |
| Static Pressure Pa | 0 |
| Indoor Sound Pressure Cool (L-M-H) dB(A) | 26 – 30 – 40 |
| Indoor Sound Pressure Heat (L-M-H) dB(A) | 25 – 36 – 41 |
| Outdoor Sound Pressure (Cool – Heat) dB(A) | 50 – 48 |
| Pipe Sizes (Gas – Liquid) in | 3/8″ & 1/4″ |
| Pipe Limits (Max Run -Height Diff) m | 20 – 15 |
| Pre Charged For (M) | 15 |
| Charge R410a (Factory – Additional) | 0.95 – 20g/m |
| Suitable for Replacement Tech | Yes |
| Indoor Drain Connection (mm) | VP16 (14id 16 od) |
| Power Supply (Outdoor) V – Ph – Hz | 230 – 1 – 50 |
| Interconnecting Cable | 3 core + E |
| Running Current (Cool – Heat) A | 4.7 – 4.7 |
| Power Consumption (Cool – Heat) kW | 1.01 – 1.00 |
| Start – Max Run Current (A) | 4.7 – 9 |
| Suggested Fuse Size (A) | 16 |
<
