Mitsubishi Electric Zen MSZ-LN50VG Air Conditioning System -Ruby Red
Mitsubishi Electric Zen MSZ-LN50VG Air Conditioning System -Ruby Red

Images are for illustration purposes only.

Mitsubishi Electric Premium MSZ-LN50VG Wall Mounted 5.0kw Air Conditioning System -Ruby Red

Warranty: 3 Years Parts Only

Installation must be carried out by a qualified F-Gas engineer, find out how we can help you.

Finance from £12.77 per week.

Price match

RRP: £1,647.60£1,932.00 inc VAT£1,610.00 ex VAT



Key Features

  • Built-in Plasma Quad Technology neutralises viruses, bacteria, allergens, PM2.5, mould and dust.
  • 3D i-see sensor grille provides energy efficient, customised comfort by automatically monitoring room occupancy, position and body temperatures.
  • Dual-Barrier coating to the heat exchanger, fan and air to prevents dust and grease accumulation to the unit.

Product Info Sheet

In stock

SKU: MSZ-LN50VRB/MUZ-LN50VG

Description

Product Description

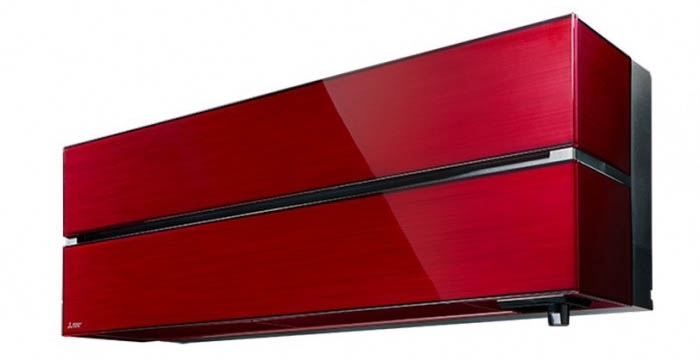

This is the MSZ-LN50VG, a 5.0kw wall-mounted air conditioner model in ruby red.

The MSZ-LN range is a wall-mounted system that blends energy efficiency with a sophisticated, streamlined design. Finished in deep, rich colours and a premium quality feel, this range features the latest product innovations, all designed to enhance the user experience.

The Plasma Quad Plus filter works like an electrical curtain, using discharge to render harmless any bacteria and viruses in the ambient air. In addition to bacteria, viruses, allergens and dust, the Plasma Quad Plus filter is also very effective at removing moulds and microparticles.

Indoor Model No MSZ-LN50VGR
Cooling Capacity 5.0 (1.0-6.0)
Heating Capacity 6.0 (1.0-8.2)
SHF (Nominal) 0.77
COP / EER (nominal) 4.05 / 3.62
SCOP / SEER (BSEN14825) 4.6 / 8.5
ErP Energy Efficiency Class (Heating & Cooling) A++ / A+++
Air Flow (l/s) Heating (SLo-Lo-Mid-Hi-SHi) 90-107-142-178-262
Air Flow (l/s) Cooling (SLo-Lo-Mid-Hi-SHi) 95-127-148-177-232
Pipe Sizes (mm) (in) Gas / Liquid 9.52 (3/8″) / 6.25 (1/4″)
Sound Pressure Level (dBa) Heating / Cooling 25-29-34-39-47 / 27-31-35-39-46
Sound Power Level (dBa) 60
Dimensions (mm) Width x Depth x Height 890 x 233 x 307
Weight (kg) 15.5
Electrical Supply Fed by the Outdoor Unit
Fuse Rating (BS88) – HRC (A) 6
Interconnecting Cable No Cores 4
Outdoor Model No MUZ-LN50VG
Sound Pressure Level (dBa) Heating / Cooling 54 / 51
Sound Power Level (dBa) Cooling 64
Weight (kg) 40
Dimensions (mm) Width x Depth x Height 800 x 285 x 714
Electrical Supply 220-240v, 50Hz
Phase Single
System Power Input (kw) Heating/Cooling (Nominal) 1.480 / 1.380
System Power Input (kw) Heating/Cooling (UK) 1.335 / 1.151
Starting Current (A) 6.8
System Running Current (A) Heating / Cooling (MAX) 6.8 / 6.2
Fuse Rating (BS88) – HRC (A) 16
Mains Cable No Cores 3
Max Pipe Length (m) 20
Max Height Difference (m) 12
Charge (kg) / CO2 Equivalent (t) – R32 (GWP 675) – 7m 1.25 / 0.85
Max Added Quantity (kg) / CO2 Equivalent (t) – R32 (GWP 675) 0.26 / 0.18

Additional information

Cooling Duty (kw)

5.0kw
Manufacturer

Mitsubishi Electric
Additonal Description

Capacity: (KW)
Heating (nominal) – 6.0 (1.0 – 8.2)
Cooling (nominal) – 5.0 (1.0 – 6.0)
Heating (UK) – 4.94 (0.82 – 6.75)
Cooling (UK) – 4.95 (0.99 – 5.94)
SHF (nominal) – 0.77
COP / EER (nominal) – 4.05 / 3.62
SCOP / SEER (BS EN14825) – 4.6 / 8.5
Erp ENERGY EFFICIENCY CLASS Heating/Cooling – A++ / A+++
Airflow (l/s):
Heating (Slo-Lo-Mid-Hi-Shi) – 90-107-142-178-262
Cooling (Slo-Lo-Mid-Hi-Shi) – 95-127-148-177-232
Pipe Size MM (in) Gas/Liquid – 9.52 (3/8’’) / 6.35 (1/4’’)
Sound Pressure Level (dBA):
Heating (SLo-Lo-Mid-Hi-Shi) – 25-29-34-39-47
Cooling (SLo-Lo-Mid-Hi-Shi) – 27-31-35-39-46
Sound Power Level (dBA) – 60
Dimensions (mm) WxDxH – 890x233x307
Weight (kg) – 15.5
Electrical Supply – Fed by Outdoor Unit
Fuse Rating (BS88) – HRC (A) – 6
Interconnecting Cable No. Cores – 4
Outdoor Unit:
Sound Pressure Level (dBA) Heating/Cooling – 54 / 51
Sound Power Level (dBA) Cooling – 64
Weight (kg) – 40
Dimensions (mm) WxDxH – 800 x 285 x 714
Electrical Supply – 220-240v. 50Hz
Phase – Single
Starting Current (A) – 6.8
System Running Current (A) – Heating/Cooling (Max) – 6.8 / 6.3 (13.9)
Fuse Rating (BS88) – HRC (A) – 16
Mains Cable No. Cores – 3
Max Pipe Length (m) – 20
Max Height Difference (m) – 12
Capacity

5.0Kw Cooling & 6Kw Heating
Power Supply

220-240V Single Phase
Indoor Depth (mm)

233
Indoor Height (mm)

307
Indoor Width (mm)

890
Weight Indoor (kg)

15.5kg
Outdoor Depth (mm)

285
Outdoor Height (mm)

714
Outdoor Width (mm)

800
Weight Outdoor (kg)

40kg
Warranty

3 Years Parts Only
