Description

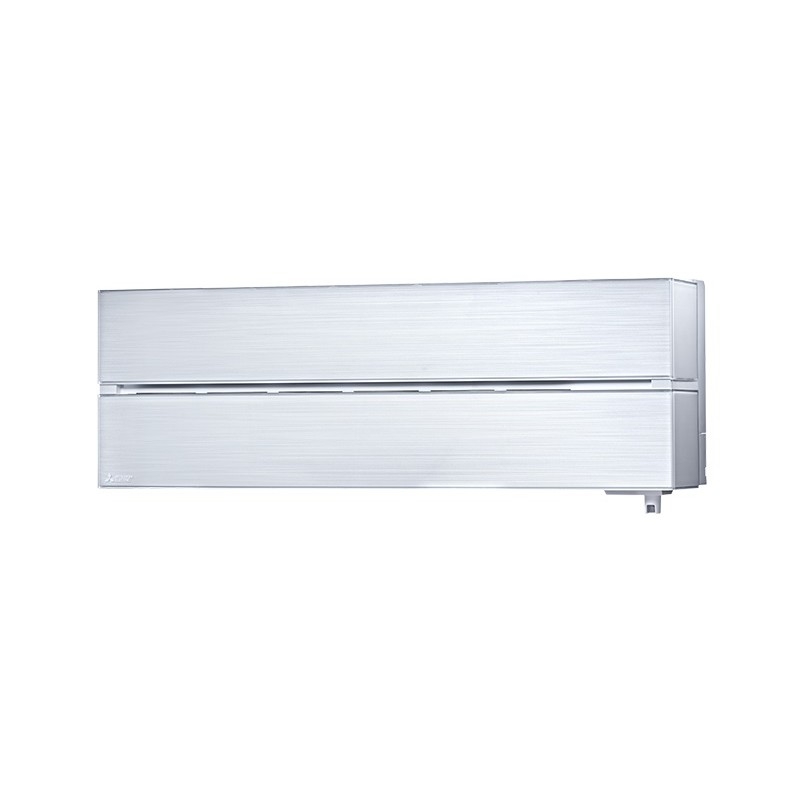

The Mitsubishi Electric MSZ-LN50VG is a wall mounted system that blends energy efficiency with a sophisticated streamline design.
Finished with a range of deep, rich colours and a premium quality feel, this range utilises low GWP R32 refrigerant
Key Features:
New stylish design available in Ruby Red, Onyx Black, Pearl White and Natural White colours
High energy efficient output, utilising low GWP R32 refrigerant
i-see sensor provides customised comfort automatically monitoring room occupancy, position and body temperatures
Built on Wi-Fi interface enabling control and monitoring via the MELCloud app
Double vanes operate independently to distribute airflow evenly throughout the room
Plasma Quad Plus filter uses a powerful plasma technology to filter out even microscopic particles
Dual-Barrier Coating to the heat exchanger, fan and air duct prevents dust and grease accumulation
Quiet operation with industry leading low noise levels
Weekly timer
Replace technology available
| Indoor Model No | MSZ-LN50VGV |
| Cooling Capacity | 5.0 (1.0-6.0) |
| Heating Capacity | 6.0 (1.0-8.2) |
| SHF (Nominal) | 0.77 |
| COP / EER (nominal) | 4.05 / 3.62 |
| SCOP / SEER (BSEN14825) | 4.6 / 8.5 |
| ErP Energy Efficiency Class (Heating & Cooling) | A++ / A+++ |
| Air Flow (l/s) Heating (SLo-Lo-Mid-Hi-SHi) | 90-107-142-178-262 |
| Air Flow (l/s) Cooling (SLo-Lo-Mid-Hi-SHi) | 95-127-148-177-232 |
| Pipe Sizes (mm) (in) Gas / Liquid | 9.52 (3/8″) / 6.25 (1/4″) |
| Sound Pressure Level (dBa) Heating / Cooling | 25-29-34-39-47 / 27-31-35-39-46 |
| Sound Power Level (dBa) | 60 |
| Dimensions (mm) Width x Depth x Height | 890 x 233 x 307 |
| Weight (kg) | 15.5 |
| Electrical Supply | Fed by the Outdoor Unit |
| Fuse Rating (BS88) – HRC (A) | 6 |
| Interconnecting Cable No Cores | 4 |
| Outdoor Model No | MUZ-LN50VG |
| Sound Pressure Level (dBa) Heating / Cooling | 54 / 51 |
| Sound Power Level (dBa) Cooling | 64 |
| Weight (kg) | 40 |
| Dimensions (mm) Width x Depth x Height | 800 x 285 x 714 |
| Electrical Supply | 220-240v, 50Hz |
| Phase | Single |
| System Power Input (kw) Heating/Cooling (Nominal) | 1.480 / 1.380 |
| System Power Input (kw) Heating/Cooling (UK) | 1.335 / 1.151 |
| Starting Current (A) | 6.8 |
| System Running Current (A) Heating / Cooling (MAX) | 6.8 / 6.2 |
| Fuse Rating (BS88) – HRC (A) | 16 |
| Mains Cable No Cores | 3 |
| Max Pipe Length (m) | 20 |
| Max Height Difference (m) | 12 |
| Charge (kg) / CO2 Equivalent (t) – R32 (GWP 675) – 7m | 1.25 / 0.85 |
| Max Added Quantity (kg) / CO2 Equivalent (t) – R32 (GWP 675) | 0.26 / 0.18 |
