Description

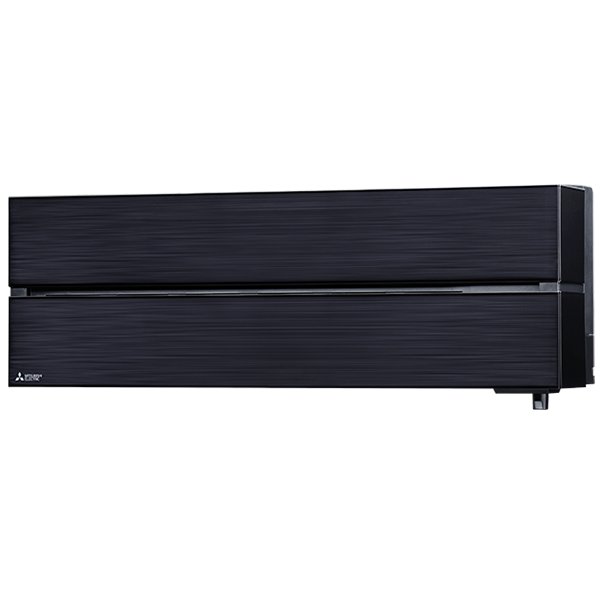

The MSZ-LN range is a wall mounted system that blends energy efficiency with a sophisticated streamline design.
Finished with a range of deep, rich colours and a premium quality feel, this range utilises low GWP R32 refrigerant
Key Features:
New stylish design available in Ruby Red, Onyx Black, Pearl White and Natural White colours
High energy efficient output, utilising low GWP R32 refrigerant
i-see sensor provides customised comfort automatically monitoring room occupancy, position and body temperatures
Built on Wi-Fi interface enabling control and monitoring via the MELCloud app
Double vanes operate independently to distribute airflow evenly throughout the room
Plasma Quad Plus filter uses a powerful plasma technology to filter out even microscopic particles
Dual-Barrier Coating to the heat exchanger, fan and air duct prevents dust and grease accumulation
Quiet operation with industry leading low noise levels
Weekly timer
Replace technology available
| Indoor Model No | MSZ-LN35VGB |
| Cooling Capacity | 3.5 (0.8 – 4.00) |
| Heating Capacity | 4.00 (1.0 – 6.3) |
| SHF (nominal) | 0.90 |
| COP / EER (nominal) | 5.00 / 4.27 |
| SCOP /SEER (BSEN14825) | 5.1 / 9.5 |
| ErP Energy Efficiency Class (Heating / Cooling) | A+++ / A+++ |
| Air Flow (l/s) Heating (SLo-Lo-Mid-Hi-SHi) | 71-97-118-142-228 |
| Air Flow (l/s) Cooling (SLo-Lo-Mid-Hi-SHi) | 71-97-118-147-213 |
| Pipe Sizes mm (in) Gas / Liquid | 9.52 (3/8″) / 6.35 (1/4″) |
| Sound Pressure Level (dBa) | 58 |
| Dimensions (mm) Width x Depth x Height | 890 x 233 x 307 |
| Weight (kg) | 15.5 |
| Electrical Supply | Fed by Outdoor Unit |
| Fuse Rating (BS88) – HRC (A) | 6 |
| Interconnecting Cable No Cores | 4 |
| Outdoor Model No | MUZ-LN35VG |
| Sound Pressure Level (dBa) Heating / Cooling | 50 / 49 |
| Sound Pressure Level (dBa) Cooling | 61 |
| Weight (kg) | 35 |
| Dimensions (mm) Width x Depth x Height | 800 x 285 x 550 |
| Electrical Supply | 220-240v, 50Hz |
| Phase | Single |
| System Power Input (kw) Heating/Cooling (nominal) | 0.800 / 0.820 |
| System Power Input (kw) Heating/Cooling (UKl) | 0.722 / 0.686 |
| Starting Current (A) | 4.0 |
| System Running Current (A) Heating / Cooling (MAX) | 4.0 / 3.9 (9.9) |
| Fuse Rating (BS88) – HRC (A) | 10 |
| Mains Cable No Cores | 3 |
| Max Pipe Length (m) | 20 |
| Max Height Difference (m) | 12 |
| Charge (kg) / CO2 Equivalent (t) R32 (GWP 675) – 7m | 1.0 / 0.68 |
| Max Added Quantity (kg) / CO2 Equivalent (t) – R32 (GWP 675) | 0.26 / 0.18 |
