Description

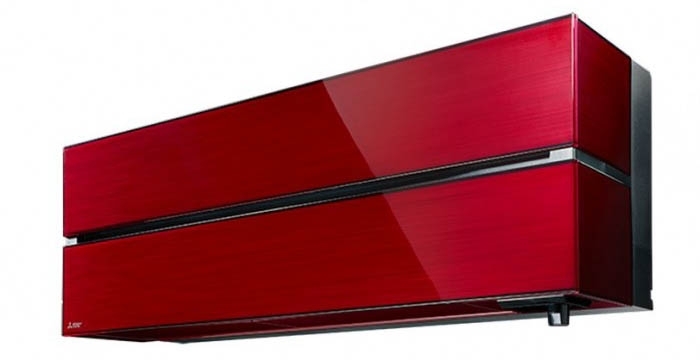

The Mitsubishi Electric MSZ-LN25VG Ruby Red, 2.5Kw cooling and 3.2Kw of heating wall mounted air conditioning system blends energy productivity with a cultured modern design. The indoor units are finished in a range of deep, vibrant colours, which are Ruby Red, Onyx Black, Pearl White and Natural White and have a premium quality feel. The i-see sensor provides tailored comfort automatically monitoring room occupancy, position and body temperatures, complete with built in Wi-Fi interface enabling control and monitoring via the MELCloud app. The double vanes operate separately to distribute airflow evenly throughout the room. Also, the Plasma Quad Plus filter with its powerful plasma technology will filter out microscopic particles. The heat exchanger has a dual barrier coating to prevent dust and grease build-up.
| Indoor Model No | MSZ-LN25VGR |
| Cooling Capacity | 2.5 (1.0 -3.5) |
| Heating Capacity | 3.2 (0.8 – 8.4) |
| SHF (Nominal) | 0.97 |
| COP / EER (Nominal) | 5.52 / 5.15 |
| SCOP / SEER (BSEN14825) | 5.2 / 10.5 |
| ErP Energy Efficiency Class (Heating & Cooling) | A+++ / A+++ |
| Airflow (l/s) Heating (Slo-Lo-Mid-Hi-SHi) | 67-95-118-142-240 |
| Airflow (l/s) Cooling (Slo-Lo-Mid-Hi-SHi) | 17-97-118-147-198 |
| Pipe Sizes mm (in) Gas / Liquid >/td> | 9.52 (3/8″) / 6.35 (1/4″) |
| Sound Pressure Level (dBa) Heating / Cooling | 19-24-29-3645 / 19-23-29-36-42 |
| Sound Power Level (dBa) | 58 |
| Dimensions (mm) Width x Depth x Height | 890 x 233 x 307 |
| Weight (kg) | 15.5 |
| Electrical Supply | Fed by Outdoor Unit |
| Fuse Rating (BS88) – HRC (A) | 6 |
| Interconnecting Cable No Cores | 4 |
| Outdoor Model No | MUZ-LN25VG |
| Sound Pressure Level (dBA) Heating / Cooling | 49 / 46 |
| Sound Power Level (dBa) Cooling | 60 |
| Weight (kg) | 35 |
| Dimensions (mm) Width x Depth x Height | 800 x 285 x 550 |
| Electrical Supply | 220-240v, 50 Hz |
| Phase | Single |
| System Power Input (kw) Heating/Cooling (Nominal) | 0.580 0.485 |
| System Power Input (kw) Heating/ Cooling (UK) | 0.523 / 0.406 |
| Starting Current (A) | 3.0 |
| System Running Current (A) Heating / Cooling (MAX) | 3.0 / 2.5 (7.1) |
| Fuse Rating (BS88) – HRC (A) | 10 |
| Mains Cable No Cores | 3 |
| Max Pipe Length (m) | 20 |
| Max Height Difference (m) | 12 |
| Charge (kg) / CO2 Equivalent (t) – R32 (GWP 675) – 7m | 0.26 / 0.18 |
| Max Added Quality (kg) / CO2 Equivalent (t) – R32 (GWP 675) | 0.26 / 0.18 |
