Description

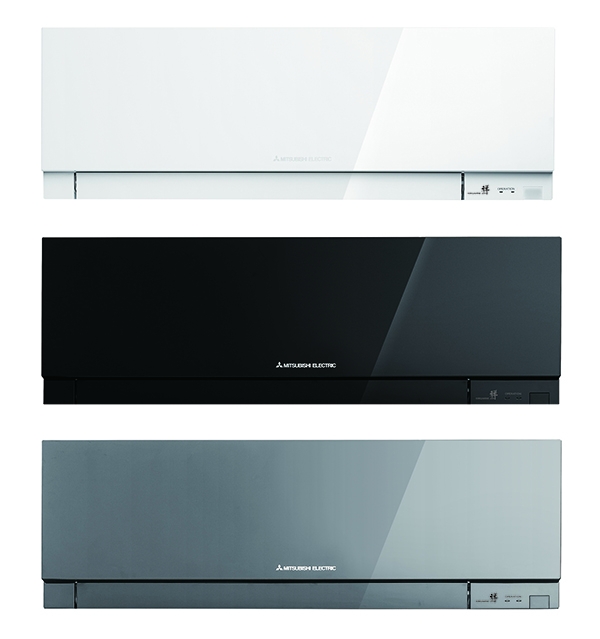

The Mitsubishi Electric Zen MSZ-EF35VG Black wall mounted air conditioning system offers energy efficient heating and cooling from a wall mounted system. The indoor wall unit uses two filtration systems to offer complete clean air quality. Features such as the weekly timer facility on the system remote control offers complete system control. Designed to complement modern interior décor and suitable for a wide range of applications, Zen units blend in naturally wherever they are installed and are available in three striking colours; black, silver and white. Built-in WiFi interface enabling control and monitoring via the MELCloud app
| Indoor Model No | MSZ-EF35VG – B |
| Cooling Capacity | 3.5 (0.8-4.0) |
| Heating Capacity | 4.0 (1.0-6.3) |
| SHF (nominal) | 0.92 |
| COP / EER (nominal) | 4.57 / 4.59 |
| SCOP / SEER (BSEN14825) | 4.7 / 8.5 |
| ErP Energy Efficiency Class (Heating & Cooling) | A++ / A+++ |
| Air Flow (l/s) Heating (SLo-Lo-Mid-Hi-SHi) | 67-77-103-148-198 |
| Air Flow (l/s) Cooling (SLo-Lo-Mid-Hi-SHi) | 67-77-105-138-175 |
| Pipe Sizes mm (in) Gas / Liquid | 9.52 (3/8″) / 6.35 (1/4″) |
| Sound Pressure Level (dBa) Heating (Slo-Lo-Mid-Hi-SHi | 21-24-29–37-45 |
| Sound Pressure Level (dBa) Cooling (Slo-Lo-Mid-Hi-SHi | 21-23-29-36-42 |
| Sound Power Level (dBa) | 60 |
| Dimensions (mm) Width x Depth x Height | 885 x 195 x 299 |
| Weight (kg) | 11.5 |
| Electrical Supply | Fed by Outdoor Unit |
| Fuse Rating (BS88) – HRC (A) | 6 |
| Interconnecting Cable No Cores | 4 |
| Outdoor Model No | MUZ-EF35VE |
| Sound Pressure Level (dBa) Heating / Cooling | 48 / 47 |
| Sound Power Level (dBa) Cooling | 58 |
| Weight (kg) | 30 |
| Dimensions (mm) Width x Depth x Height | 800 x 285 x 550 |
| Electrical Supply | 220-240v, 50Hz |
| Phase | Single |
| System Power Input (kw) Heating / Cooling (Nominal) | 0.700 / 0.545 |
| System Power Input (kw) Heating / Cooling (UKl) | 0.64 / 0.44 |
| Starting Current (A) | 3.50 |
| System Running Current (A) Heating / Cooling (MAX) | 3.5 / 2.9 (7.3) |
| Fuse Rating (BS88) -HRC (A) | 10 |
| Mains Cable No Cores | 3 |
| Max Pipe Length (m) | 20 |
| Max Height Difference (m) | 12 |
| Charge R32 (kg) – 7m | 0.8 |
