Mitsubishi Electric Zen MSZ-EF25VE2
Mitsubishi Electric Zen MSZ-EF25VE2

Images are for illustration purposes only.

Mitsubishi Electric Zen MSZ-EF25VG Wall Mounted 2.5kw Air Conditioning System-Silver

Warranty: 3 Years Parts Only

Finance from £6.62 per week.

Price match

RRP: £854.40£1,002.00 inc VAT£835.00 ex VAT

In stock

SKU: MSZ-EF25VGS

Description

The Mitsubishi Electric Zen MSZ-EF25VGK  is a wall mounted air conditioning system that blends energy efficiency with a sophisticated, streamlined design.
Combining an impressively low power consumption with a quiet, yet powerful performance, units have a distinctively styled front panel that not only looks appealing, but also helps to make cleaning of the unit easier.

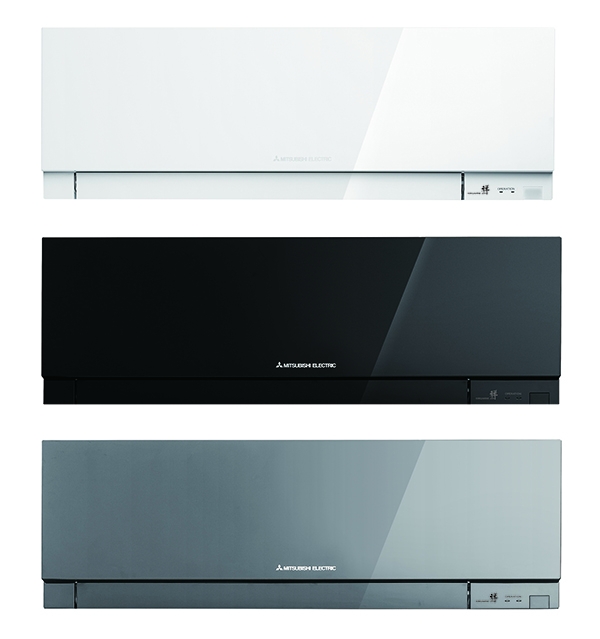

Designed to complement modern interior décor and suitable for a wide range of applications, Zen units blend in naturally wherever they are installed and are available in three striking colours; black, silver and white.
To aid control and energy saving, the new universal controller has an in built 7 day timeclock.

Indoor Model No MSZ-EF25VG – S
Cooling Capacity 2.5 (1.2-3.4)
Heating Capacity 3.2 (1.1-4.2)
SHF (nominal) 0.92
COP / EER (nominal) 4.57 / 4.59
SCOP / SEER (BSEN14825) 4.7 / 8.5
ErP Energy Efficiency Class (Heating & Cooling) A++ / A+++
Air Flow (l/s) Heating (SLo-Lo-Mid-Hi-SHi) 67-77-103-148-198
Air Flow (l/s) Cooling (SLo-Lo-Mid-Hi-SHi) 67-77-105-138-175
Pipe Sizes mm (in) Gas / Liquid 9.52 (3/8″) / 6.35 (1/4″)
Sound Pressure Level (dBa) Heating (Slo-Lo-Mid-Hi-SHi 21-24-29–37-45
Sound Pressure Level (dBa) Cooling (Slo-Lo-Mid-Hi-SHi 21-23-29-36-42
Sound Power Level (dBa) 60
Dimensions (mm) Width x Depth x Height 885 x 195 x 299
Weight (kg) 11.5
Electrical Supply Fed by Outdoor Unit
Fuse Rating (BS88) – HRC (A) 6
Interconnecting Cable No Cores 4
Outdoor Model No MUZ-EF25VE
Sound Pressure Level (dBa) Heating / Cooling 48 / 47
Sound Power Level (dBa) Cooling 58
Weight (kg) 30
Dimensions (mm) Width x Depth x Height 800 x 285 x 550
Electrical Supply 220-240v, 50Hz
Phase Single
System Power Input (kw) Heating / Cooling (Nominal) 0.700 / 0.545
System Power Input (kw) Heating / Cooling (UKl) 0.64 / 0.44
Starting Current (A) 3.50
System Running Current (A) Heating / Cooling (MAX) 3.5 / 2.9 (7.3)
Fuse Rating (BS88) -HRC (A) 10
Mains Cable No Cores 3
Max Pipe Length (m) 20
Max Height Difference (m) 12
Charge R410a (kg) – 7m 0.8

Additional information

Cooling Duty (kw)

2.5kw
Manufacturer

Mitsubishi Electric
Additonal Description

Capacity:
Heating (nominal) – 3.2 (1.1-4.2)
Cooling (nominal) – 2.5 (1.2-3.4)
Heating (UK) – 2.65 (0.91-3.49)
Cooling (UK) – 2.48 (1.19-3.37)
SHF (nominal) – 0.92
COP / EER (nominal) – 4.57 / 4.59
SCOP / SEER (BS EN14825) – 4.7 / 8.5
ErP Energy Efficiency Class Heating/Cooling – A++ / A+++
Air Flow (M3/min) Heating/Cooling – Slo-Lo-Mi-Hi-Shi – 4.0-4.6-6.2-8.9-11.9 / 4.0-4.6-6.3-8.3-10.5
Pipe Size mm (in) Gas/Liquid – 9.52 (3/8’’) / 6.35 (1/4’’)
Sound Pressure Level (dBA) Heating/Cooling – Silent-Lo-Mi-Hi-Shi – 21-24-29-37-45 / 21-23-29-36-42
Sound Power Level (dBA) – 60
Dimensions (mm) WxDxH – 895x195x299
Weight (kg) – 11.5
Electrical Supply – Fed by Outdoor Unit
Fuse Rating (BS88) – HRC (A) – 6
Interconnecting Cable No. Cores – 4
Outdoor Unit:
Sound Pressure Level (dBA) Heating/Cooling – 48 / 47
Sound Power Level (dBA) Cooling – 58
Weight (kg) – 30
Dimensions (mm) WxDxH – 800x285x550
Electrical Supply – 220-240v, 50Hz
Phase – Single
Starting Current (A) – 3.5
System Running Current (A) Heating/Cooling (MAX) – 3.5 / 2.9 (7.3)
Fuse Rating (BS88) – HRC (A) – 10
Mains Cable No. Cores – 3
Max Pipe Length (m) – 20
Max Height Difference (m) – 12
Charge R410A (kg) – 7m – 0.8
Capacity

2.5Kw Cooling & 3.2Kw Heating
Power Supply

220-240V Single Phase, 50Hz
Indoor Depth (mm)

195
Indoor Height (mm)

299
Indoor Width (mm)

885
Weight Indoor (kg)

11.5kg
Outdoor Depth (mm)

285
Outdoor Height (mm)

550
Outdoor Width (mm)

800
Weight Outdoor (kg)

30kg
Warranty

3 Years Parts Only
