Description

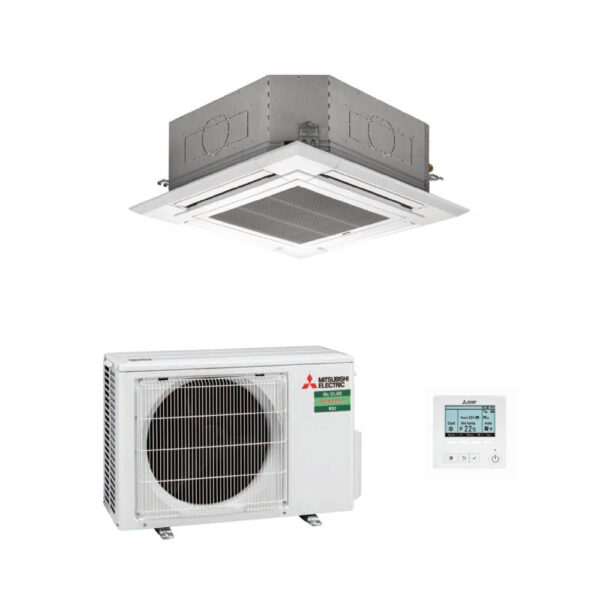

This Mitsubishi Electric PLA-M50EA 4-Way blow ceiling cassette air conditioning system is a standard inverter and has a variety of different features and a streamlined design. This unit offers an advanced control option along with quirt operation. The improved airflow control includes horizontal airflow for greater comfort. With the optional 3D i-see sensor grille (PLP-6EAE) you can customize the comfort by automatically monitoring room occupancy, position and body temperatures.
| Indoor Model No | PLA-M50EA |
| Cooling Capacity (kW) | 5.5 (1.2 – 5.6 |
| Heating Capacity (kW) | 6.0 (1.5 – 7.2) |
| SHF (Nominal) | 0.77 |
| COP / EER (Nominal) | 3.46 / 3.40 |
| SCOP / SEER (BS EN14825) | 4.10 / 6.70 |
| ErP Energy Efficiency Class (Heating / Cooling) | A+ / A++ |
| AirFlow (l/s) Lo-Mi-M2-Hi | 200-233-317-350 |
| Pipe Size mm (in) Gas/Liquid | 12.7 (1/2″) / 6.35 (1/4″) |
| Sound Pressure Level (dBA) Lo-Mi-M2-Hi | 27-29-31-32 |
| Sound Power Level (dBA) | 54 |
| Dimensions (mm) W x D x h (Grille) | 840 (950) x 840 (950) x 258 (40) |
| Weight (kg) Unit / Panel | 19 / 5 |
| Electrical Supply | Fed by Outdoor Unit |
| Fuse Rating (BS88) – HRC (A) | 6 |
| Interconnecting Cable No. Cores | 4 |
| Grille Reference | PLP-6EA |
| Wired Remote Controller Reference | PAR-40MAA |
| Wireless Remote Controller Reference | PAR-SL100A-E |
| Outdoor Unit Model No | SUZ-M50VA |
| Sound Pressure Level (dBA) Heating / Cooling | 48 / 49 |
| Sound Pressure Level (dBA) Cooling | 64 |
| Weight (kg) | 41 |
| Dimensions (mm) W x D x H | 800 x 285 x 714 |
| Electrical Supply | 220-240v, 50Hz |
| Phase | Single |
| System Power Input (kW) Heating/Cooling (nominal) | 1.73 / 1.61 |
| System Power Input (kW) Heating/Cooling (UK) | 1.47 / 1.39 |
| Starting Current (A) | 8.0 |
| System Running Current (A) Heating / Cooling (MAX) | 8.0 / 7.1 (13.5) |
| Fuse Rating (BS88) – HRC (A) | 20 |
| Mains Cable No. Cores | 3 |
| Max Pipe Length (m) | 30 |
| Max Height Difference (m) | 30 |
| Charge Refrigerant (kg) / CO2 Equivalent (t) R32 (GWP 675) | 1.20 / 0.81 |
| Max Additional Refrigerant (kg) / CO2 Equivalent (t) R32 (GWP 675) | 1.66 / 1.12 |
