Description

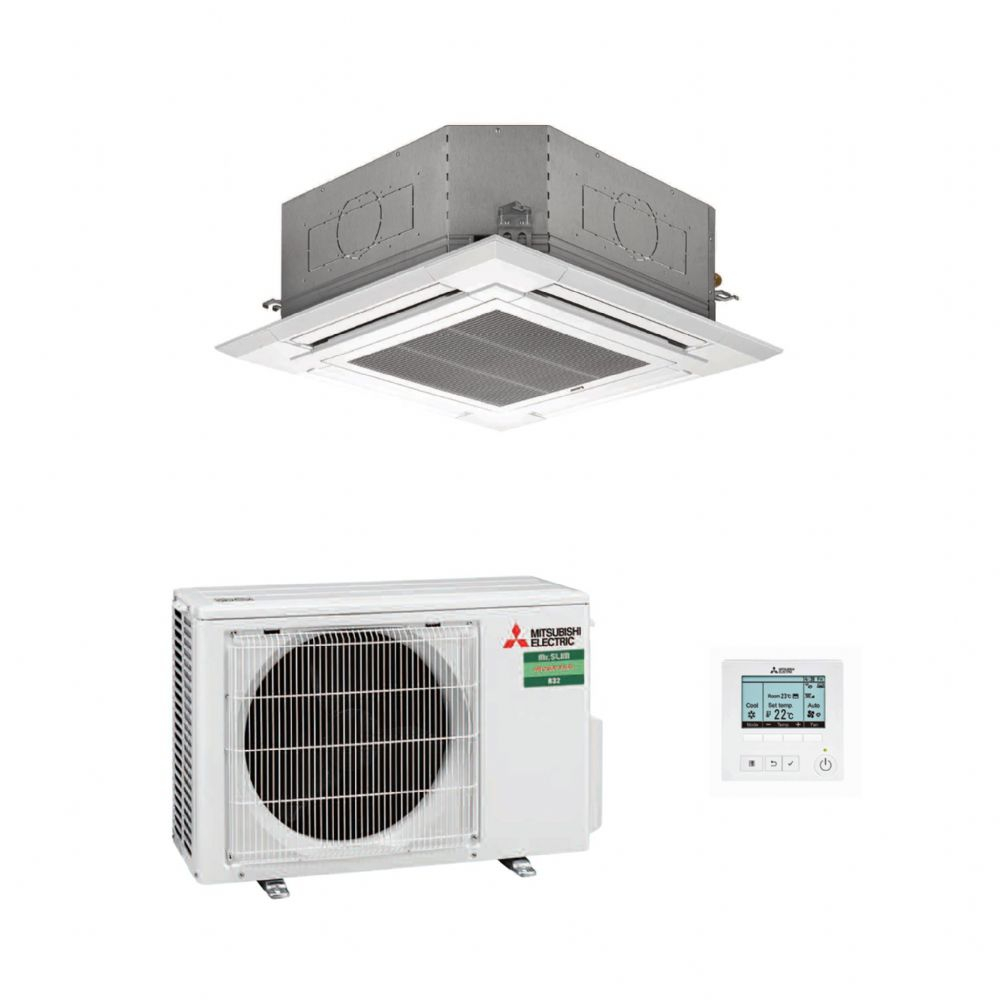

This Mitsubishi Electric PLA-M35EA 4-Way blow ceiling cassette air conditioning system is a standard inverter ceiling cassette and has a multitude of amazing features and a streamlined design. This unit offers an advanced control option along with quirt operation. The improved airflow control includes horizontal airflow for greater comfort. With the optional 3D i-see sensor grille (PLP-6EAE) you can customize the comfort by automatically monitoring room occupancy, position and body temperatures. This air conditioning system is suitable for all applications such as offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas.
| Indoor Model No | PLA-M35EA |
| Cooling Capacity (kW) | 3.4 (0.8 – 3.9) |
| Heating Capacity (kW) | 4.1 (1.0 – 5.0) |
| SHF (Nominal) | 0.91 |
| COP / EER (Nominal) | 4.20 / 4.00 |
| SCOP / SEER (BS EN14825) | 4.70 / 7.40 |
| ErP Energy Efficiency Class (Heating / Cooling) | A++ / A++ |
| AirFlow (l/s) Lo-Mi-M2-Hi | 183-217-250-267 |
| Pipe Size mm (in) Gas/Liquid | 9.52 (3/8″) / 6.35 (1/4″) |
| Sound Pressure Level (dBA) Lo-Mi-M2-Hi | 26-28-29-31 |
| Sound Power Level (dBA) | 51 |
| Dimensions (mm) W x D x h (Grille) | 840 (950) x 840 (950) x 258 (40) |
| Weight (kg) Unit / Panel | 19 / 5 |
| Electrical Supply | Fed by Outdoor Unit |
| Fuse Rating (BS88) – HRC (A) | 6 |
| Interconnecting Cable No. Cores | 4 |
| Grille Reference | PLP-6EA |
| Wired Remote Controller Reference | PAR-40MAA |
| Wireless Remote Controller Reference | PAR-SL100A-E |
| Outdoor Unit Model No | SUZ-M35VA |
| Sound Pressure Level (dBA) Heating / Cooling | 48 / 48 |
| Sound Pressure Level (dBA) Cooling | 59 |
| Weight (kg) | 35 |
| Dimensions (mm) W x D x H | 800 x 285 x 550 |
| Electrical Supply | 220-240v, 50Hz |
| Phase | Single |
| System Power Input (kW) Heating/Cooling (nominal) | 0.97 / 0.90 |
| System Power Input (kW) Heating/Cooling (UK) | 0.83 / 0.77 |
| Starting Current (A) | 5.0 |
| System Running Current (A) Heating / Cooling (MAX) | 5.0 / 4.1 (8.5) |
| Fuse Rating (BS88) – HRC (A) | 10 |
| Mains Cable No. Cores | 3 |
| Max Pipe Length (m) | 20 |
| Max Height Difference (m) | 12 |
| Charge Refrigerant (kg) / CO2 Equivalent (t) R32 (GWP 675) | 0.90 / 0.61 |
| Max Additional Refrigerant (kg) / CO2 Equivalent (t) R32 (GWP 675) | 1.16 / 0.78 |
