Description

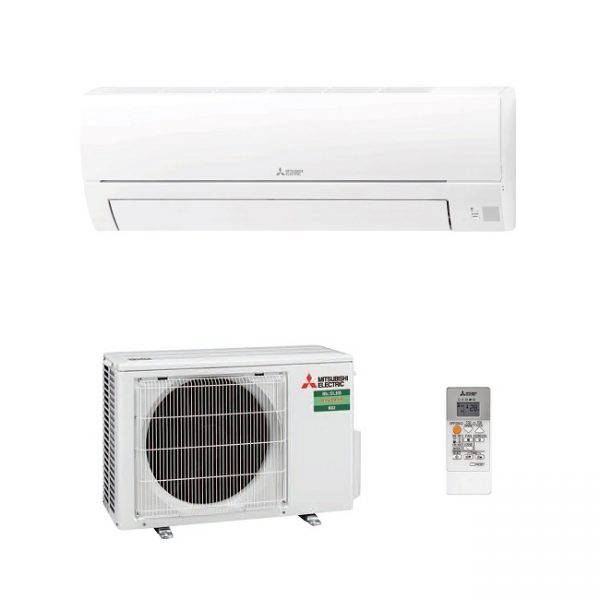

The Mitsubishi Electric classic MSZ-HR25VF R32 air conditioning system is a high specification “Classic” flat panel wall mounted model and makes use of the latest Mitsubishi Electric inverter technology. This unit is high energy efficient, using the latest GWP R32 Refrigerant. This unit has an optional Wi-Fi interface, enabling you to control the air conditioning system from your smartphone, tablet or PC using the MELCloud App. There is also a daily timer which would provide greater control of scheduling.
| Indoor Model No | MSZ-HR25VF |
| Heating (nominal) | 3.15 (0.7 – 3.5) |
| Cooling (nominal) | 2.50 (0.5 – 2.9) |
| Heating (UK) | 2.61 (0.6 – 2.9) |
| Cooling (UK) | 2.48 (0.5 – 2.8) |
| SHF (nominal) | 0.78 |
| COP/EER (nominal) | 3.71 / 3.13 |
| SCOP/SEER (BS 14825) | 4.30 / 6.20 |
| Erp Energy Efficiency Class Heating/Cooling | A+ / A++ |
| Airflow (l/s) Heating Lo-Mid-Hi-Shi) | 55-90-123-168 |
| Airflow (l/s) Cooling (Lo-Mid-Hi-Shi) | 60-90-120-162 |
| Pipe Sizes MM (in) | 9.52 (3/8″) / 6.35 (1/4″) |
| Sound Pressure Level (dBA) – Heating (Lo-Mid-Hi-Shi) | 21-30-37-43 |
| Sound Pressure Level (dBA) – Cooling (Lo-Mid-Hi-Shi) | 21-30-37-43 |
| Sound Power Level (dBA) | 57 |
| Dimensions (mm) WxDxH | 838 x 228 x 280 |
| Weight (kg) | 8.5 |
| Electrical Supply | Fed by Outdoor Unit |
| Fuse Rating (BS88) – HRC (A) | 6 |
| Interconnecting Cable No. Cores | 4 |
| Outdoor Unit Model No | MUZ-HR25VF |
| Sound Pressure Level (dBA) Heating / Cooling | 50 / 50 |
| Sound Power Level (dBA) Cooling | 63 |
| Weight (kg) | 23 |
| Dimensions (mm) WxDxH | 699 x 249 x 538 |
| Electrical Supply | 220-240v, 50Hz |
| Phase | Single |
| System Power Input (kW) Heating / Cooling -Nominal | 0.85 / 0.80 |
| System Power Input (kW) Heating / Cooling -UK | 0.77 / 0.63 |
| Starting Current (A) | 4.1 |
| System Running Current (A) Heating/Cooling (Max) | 4.1 / 3.8 (4.8) |
| Fuse Rating (BS88) – HRC (A) | 10 |
| Mains Cable No. Cores | 3 |
| Max Pipe Length (m) | 20 |
| Max Height Difference (m) | 12 |
| Charge Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675) – 7m | 0.40 / 0.27 |
| Max Additional Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675) | 0.26 / 0.18 |
