Description

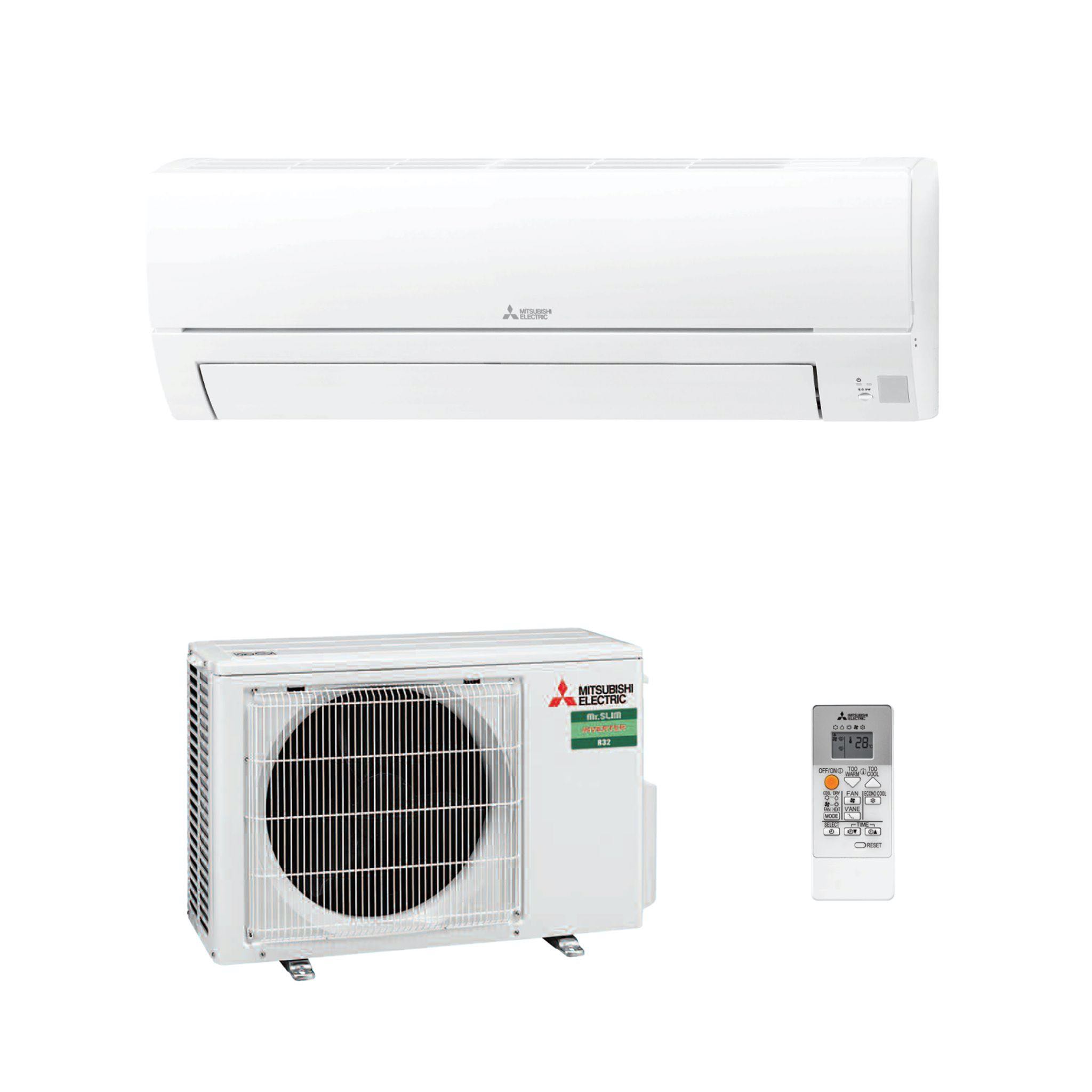

The Mitsubishi Electric M Series MSY-TP R32 High SHF wall mounted system blends energy efficiency with a contemporary white design. This COOLING ONLY unit has a high sensible cooling capacity, making it ideal for small computer rooms or areas that require a greater degree of sensible cooling. The MSY-TP also utilises low GWP R32 refrigerant.
| Indoor Model No | MSY-TP35VF |
| Cooling (kW) Nominal | 3.5 (1.5 – 4.0) |
| Cooling (kW) UK | 3.47 (1.48 – 9.96) |
| SHF (nominal) | 0.98 |
| EER (Nominal) | 4.61 |
| SEER (BS EN14825) | 9.00 |
| ErP Energy Efficiency Class – Cooling | A++= |
| Air flow (l/sec) Cooling | 168-193-228-273 |
| Pipe Sizes mm (in) | 9.52 (3/8″) / 6.35 (1/4″) |
| Sound Pressue Level (dBA) Cooling Lo-Mi-Hi-SHi | 31-36-40-45 |
| Sound Power Level (dBA) | 60 |
| Dimensions (mm) WxDxH | 923 x 250 x 305 |
| Weight (kg) | 12.5 |
| Electrical Supply | 220-240v 50Hz |
| FuseRating (BS88) – HRC (A) | 10 |
| Interconnecting Cable No. Cores | 4 |
| Outdoor Unit Model No | MUY-TP35VF |
| Sound Pressure Level (dBA) Cooling | 45 |
| Sound Power Level (dBA) Cooling | 58 |
| Weight (kg) | 34 |
| Dimensions (mm) WxDxH | 800 x 285 x 550 |
| Electrical Supply | Fed by Indoor Unit |
| Phase | Single |
| System Power Input (kW) Cooling – Nominal | 0.76 |
| System Power Input (kW) Cooling – UK | 0.65 |
| Starting Current (A) | 3.6 |
| System Running Current (A) Cooling / Max | 3.6 (9.2) |
| Fuse Rating (BS88) – HRC (A) | 10 |
| Mains Cable No. Cores | 3 |
| Max Pipe Length (m) | 20 |
| Max Height Difference (m) | 12 |
| Charge Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675) | 0.85 / 0.57 |
| Max Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675) | 0.13 / 0.09 |
