Description

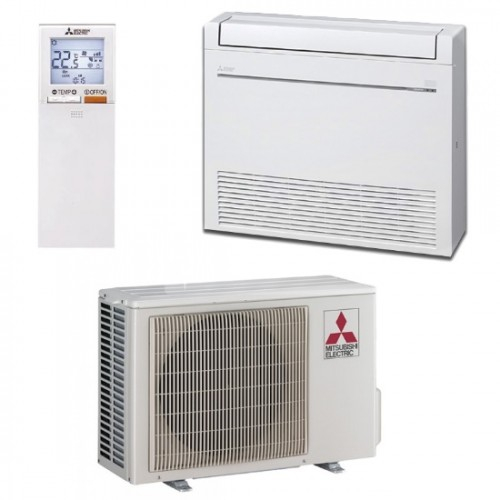

The Mitsubishi Electric MFZ-KT25VG Floor mounted air conditioning system is a well designed and extremely versatile floor mounted system. This air conditioning systems auto swing three vanes provide natural and comfortable cooling throughout the room, and provides optimum air distribution . There is an inbuilt 7-day timer to aid control and save energy.
| Indoor Model No | MFZ-KT25VG |
| Cooling Capacity (Nominal) | 2.5 (1.6-3.2) |
| Heating Capacity (Nominal) | 3.4 (1.3 -4.2) |
| SHF (Nominal) | 0.79 |
| COP / EER (Nominal) | 3.74 / 4.03 |
| SCOP / SEER (BS EN14825) | 4.2 / 6.5 |
| ErP Energy Efficiency Class (Heating / Cooling) | A+ / A++ |
| Airflow (l/s) Heating – Silent – Lo – Mi – Hi – SHi | 58-67-93-122-162 |
| Airflow (l/s) Cooling – Silent – Lo – Mi – Hi – SHi | 65-80-108-130-148 |
| Pipe Size mm (in) | 9.52 (3/8″) / 6.35 (1/4″) |
| Sound Pressure Level (dBa) Heating/Cooling – Silent – Lo – Mi – Hi – SHi | 19-23-30-37-44 / 19-24-31-37-41 |
| Sound Power Level (dBa) | 54 |
| Dimensions (mm) Width x Depth x Height | 750 x 215 x 600 |
| Weight (kg) | 14.5 |
| Electrical Supply | Fed by the Outdoor Unit |
| Fuse Rating (BS88) – HRC (A) | 6 |
| Interconnecting Cables No. Cores | 4 |
| Outdoor Unit Model No | SUZ-M25VAR2 |
| Sound Pressure Level (dBa) Heating/Cooling | 46 / 45 |
| Sound Power Level (dBa) Cooling | 59 |
| Weight (kg) | 30 |
| Dimensions (mm) Width x Depth x Height | 800 x 285 x 550 |
| Electrical Supply | 220 -240V , 50Hz |
| Phase | Single |
| System Power Input (kW) Heating/Cooling (Nominal) | 0.80 / 0.71 |
| System Power Input (kW) Heating/Cooling (UK) | 0.68 / 0.61 |
| Starting Current (A) | 3.7 |
| System Running Current (A) Heating/Cooling (MAX) | 3.7 / 3.0 (6.8) |
| Fuse Rating (BS88) – HRC (A) | 10 |
| Mains Cable No. Core | 3 |
| Max Pipe Length (m) | 20 |
| Max Height Difference (m) | 12 |
| Charge Refrigerant (KG) / CO2 Equivalent (T) – R32 (GWP 675) – 7M | 0.65 / 0.44 |
| Max Additional Refrigerant (KG) / CO2 Equivalent (T) – R32 (GWP – 675) | 0.26 / 0.18 |
