Description

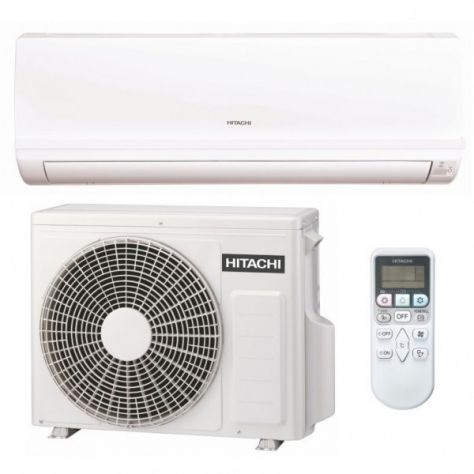

The Hitachi Summit RAK-35REF Wall Mounted 3.5kw Air Conditioning System has a Volt Free control of the air conditioning system- can be used to turn the unit on/off remotely after receiving a signal such as key-card, door or window switch, specifically useful in hotel rooms to prevent unnecessary use, Accessory SPX WDC3 is required.
Guaranteed operation on heating mode down to -15°C
Heating mode lock suitable for BREEM assessed buildings where cooling mode might not be accepted or simply where cooling is not required.
Compact units (280 x 780 x 218) are common across the entire range and allow for easier integration
Remote controllers are user friendly, easy to use infra-red remote control for optimal comfort
DC Inverter Outdoor unit – As the pioneer of DC Inverter driven room air conditioners Hitachi units boast the significant advantage of all DC inverter driven compressors and fans allowing precise control of capacity and temperature.
| Indoor / Outdoor Model No | RAK-35REF / RAC-35WEF |
| Nominal Cooling Capacity (Sens) kW | 3.5 (2.87) |
| Nominal Heating Capacity kW | 4.2 |
| SEER | 5.9 |
| SCOP | 3.8 |
| Energy Rating | A+ / A |
| Pipe Sizes (Liquid – Gas) Inch | 1/4″ / 3/8″ |
| Max Pipe Length (m) | 20 |
| Max Height Difference (m) | 10 |
| Pre Charge / Additional Charge (kg/g/m) | 0.95 / – |
| Power Supply | Single Phase to Outdoor |
| Interconnecting Cables | 3 + E |
| Suggested Fuse Rating (A) | 16 |
| Dimensions – Indoor H x W x D (mm) | 280 x 780 x 218 |
| Dimensions – Outdoor H x W x D (mm) | 530 x 660 x 278 |
| Weight – Indoor (kg) | 7.5 |
| Weight – Outdoor (kg) | 27.5 |
