Description

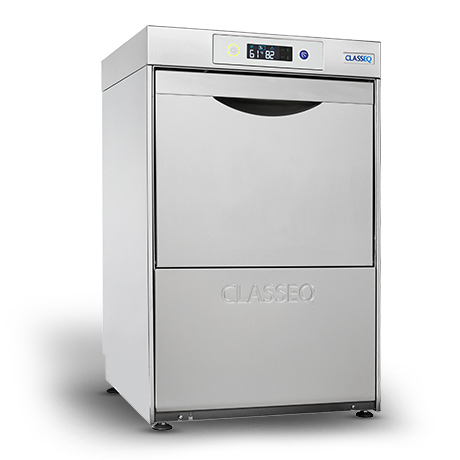

Available in two sizes, our front-loading commercial glasswasher with digital display, two wash programs and full WRAS compliance for effortless and consistantly clean results
The digital LCD display accurately shows th etemperature of the wash tank and rinse boiler, re-assuring the operator that it is up to temperature and fully sanitising during the wash cycle.
Two wash programmes – standard (2min) and light (1.5min) cycles allow for maximum output without compromising wash quality
All Duo’s come with Drain Pumps and built in chemical dispensers to ensure they meet installation requirements
LCD display – enhances user functionaliy by displaying rinse and wash tank temperatures
Water board (WRAS) Compliant- All Duo machines are fully compliant with essential Water Board regulations
Double skinned sides and door allows a quieter operation and reducese heat loss
Water Supply Connection – 3/4″BSP
| Model No | G400DUO |
| Hydraulic Specifications | |
| Water supply connection | 3/4″ BSP |
| Minimum allowed supply water pressure | 0.5 bar |
| Required water flow rate | 11L/min |
| Minimum incoming water temperature | 4°C |
| Maximum incoming water temperature | 55°C |
| Gravity drain height (from machine base) | 40mm |
| Pumped drain height (from machine base) | 540mm |
| Drain size | Ø 40mm |
| Electrical Specifications | |
| Standard Set-Up | |
| Amps required | 13A (1 phase) |
| Standard operating voltage | 220-240V /1N / 50Hz |
| Total connected load | 2.85kW |
| Optional Set-Up | |
| Amps Required | 13A (3 phase) |
| Standard operating voltage | 380-415V / 3N / 50Hz |
| Total connected load | 6.58Kw |
| Optional Set- Up | |
| Amps required | 30A (1 phase) |
| Standard operating voltage | 220-240V / 1N / 50Hz |
| Total connected load | 6.58Kw |
| Performance | |
| Theoretical Max racks/hour | 40 |
| Glasses per rack | 16 |
| Wash tank element | 2.00kW |
| Rinse tank element | 2.60kW |
| Wash tank capacity | 9.77 Litres |
| Rinse tank capacity | 6.5 Litres |
| Rinse water consumption at 3 bar | 3.00L/cycle |
| Wash tank temperature | 55°C |
| Rinse tank temperature | 82°C |
| Wash pump power | 0.25kW |
| Rinse pump power | 0.10kW |
| Other | |
| Noise level | <70dB |
| Empty weight | 40.3kg |
| Fully loaded weight | 46.8kg |
| Packaged weight | 49.8kg |
