Description

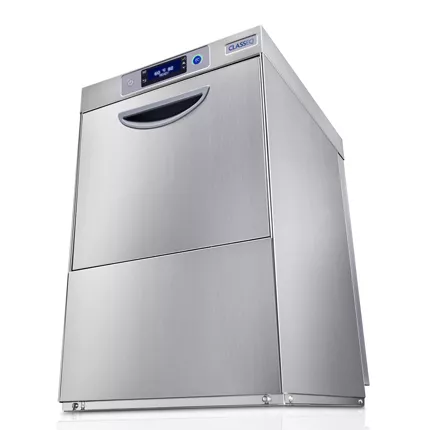

The Classeq C400 Undercounter washer range can be configured as the C400 Glasswasher or the C400 Dishwasher during the commissioning of the washer. One model with all the features you may need. All you need to do is choose the size, power and optional integrated water softener. Simple to use, just press on, press wash and the display will show any notifications or troubleshooting advise. Easy to clean with click in and out wash arms, moulded basket rails and a double filtration system. New bluetooth app for operators and service technicians with access to user guides and machine settings. Easy to use with a colour coded display and hygiene & services reminders. Drain pump, rinse booster pump, detergent and rinse aid pump as standard
Capacities & Performance
Glasses per rack – 16
Plates per rack – 9
Wash Programme – Glass 1.5 & 2 min. cycles
Wash Programme – Dish 2, 3 & 5 min.
Theoretical max. racks per hour – Glass 40
Theoretical max. racks per hour – Dish 30
Wash tank capacity – 9.5 litres
Rinse tank capacity – 6.5 litres
Wash temperature – 60˚C
Rinse temperature – Glass 70˚C
Rinse temperature – Dish 82˚C
Water consumption per cycle – 2.75 litres
Electrical specification
13 Amp Plug – 1 Phase
Amps required – 13A (1 Phase)
Standard operating voltage – 220-240V/1N~/50Hz
Total connected load – 2.5 kW
30 Amp – 1 Phase
Amps required – 30A (1 Phase)
Standard Operating Voltage – 220-240V/1N~/50Hz
Total Connected Load – 6.5 kW
13 Amp – 3 Phase
Amps required – 13A (3 Phase)
Standard Operating Voltage – 380-415V/3N~/50Hz
Total Connected Load – 6.5 kW
Hydraulics specification
Water supply connection – G3/4”
Required water pressure min/max – 1-10 bar
Incoming Water temperature (min/max) – 4°C/55°C
Drain size – 40mm diam.
Maximum drain height (from machine base) – 500mm
Optional integrated water softener – Yes
